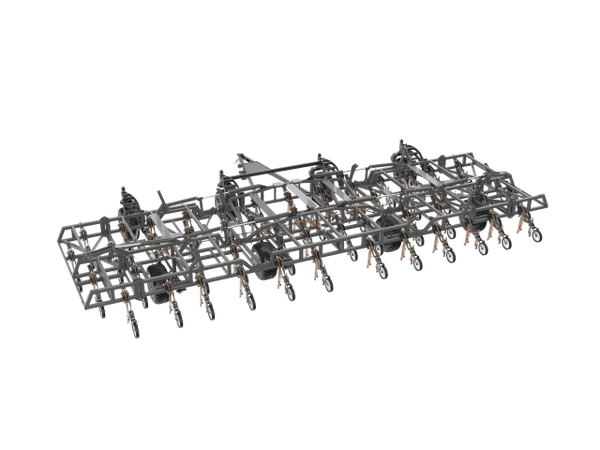

FEATURES - Bar Frame
Deep Frame
Fully Welded Heavy Duty
Fully Welded Heavy Duty
.
Fully Welded Heavy Duty
Fully Welded Heavy Duty
Fully Welded Heavy Duty
.
Floatation
Fully Welded Heavy Duty
Floatation
.
Transport
Floatation
.
No Tyre Marks
.
Assembly and Pre-Delivery
.
BAR ADD-ONS
Air Kits
We use Raycol for our S/S Risers and Secondary Heads, and Maxipoint for Air Seeder Hose, Brackets, Clamps and Fasteners.
Liquid Kits
We are able to supply and install Furrow Management Systems and Liquid Systems SA liquid kits.
FEATURES - Row Unit
Packing Pressure Adjustment
Packing Pressure Adjustment
Packing Pressure Adjustment
Press wheel packing pressure is adjustment quick and simply, with one special hand held tool. 5 settings in 7kg increments allow the farmer full control of packing pressure.
Seed Depth Adjustment
Packing Pressure Adjustment
Packing Pressure Adjustment
Seed height adjustment is quick and simple with no tools required. The spring loaded pin allows adjustment in 7mm increments. The mechanism is strong and robust and doesn't rattle loose, and the pin is at a comfortable knee height.
Wheel Scraper
Packing Pressure Adjustment
In most soil conditions the wheel scraper is a vital component in maintaining consistent and accurate seed depth. On an Eagle Seeding Bar the seed placement is totally governed by the press wheel so keeping all wheel clear of soil built up is critical.
Pivoting Press Wheel
Our press wheel pivots to follow the furrow more accurately, and removes 'smearing' of the soil when turning. The pivot also reduces wear and tear on the row unit, and it can allow the wheel to go around rocks instead of over them.
Seed Placement Options
Our range of backshoots give the farmer multiple seed placement options while maintaining accuracy and durability in the boots. For backshoot options Click Here.
Points & Fertiliser
A large range of points with various depth and angle options, and fert delivery is clean, simple and straight to achieve accurate deep banded fertiliser to the bottom of the trench (root zone) with minimal chance of blocking.
For point options Click Here.
